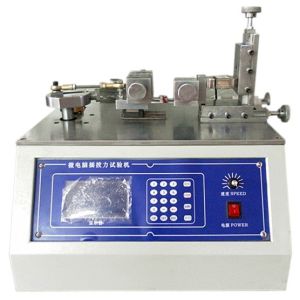

Product Introduction:

The plugging force testing machine is suitable for the plugging and unplugging force test of various mobile phones and computer peripheral connectors, this machine can solve the fixture problem of various connector tests, and the male and female connectors can be automatically aligned during the test, and there will be no unilateral problem. The mating force testing machine is suitable for the automatic testing of the insertion force and pull-out force of various connectors, and with the patented design of the automatic centering device, it will be able to obtain a completely accurate mating force test. The insertion force and the pull-out force (PEAK value) can be displayed for each insertion. The test speed and the number of tests can be set

Main parameters:

1. It has the function of automatic stop alarm for overload resetting

2. It has the function of automatic saving, which can automatically save up to ten points and obtain the average value

3. Use the list method to test the saved test data.

4. With the administrator password, the user can change the boot password.

5. The software is used to compare the load value.

6. Use full Chinese prompt to set internal functions, easy to operate.

7. Frequency range: 0~999999 (configurable)

8. Transmission mode: Rotate eccentric wheel

9. Display mode: large screen LCD liquid crystal display is beautiful and generous

10. Plugging force range: 0~50kg (optional)

11. Minimum plugging and unplugging force solution clarity: 0.01kg

12. Example of stroke adjustment: 0~60mm

13. Test speed: 10~60(digital display)

14. Two units to convert: N, KG, IB

15. Machine size: 550 (D) * 470 (W) * 450 (H) mm

16. Working voltage: single phase 220V, 2A

17. Configuration: Micro printer

18. Chassis: Electrostatic powder spraying paint

19. Motor: 90W

20. Weight (approx.): 60kg

21. Main circuit fuse: 2A

After-sales service :

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;

In the event of any technical failure outside the warranty period, we will provide free telephone consultation services, and can also carry out paid repair and maintenance services;

Our advantages:

1. Professional technical support.

2. Rich experience in loading a large number of containers in Chinese seaports.

3. Fast shipping by well-known shipping company.

4. Best service with email after shipment.

5. We are a professional testing equipment manufacturer in China, with rich experience and skills, and also with the best quality products.

6. Timely after-sales service
